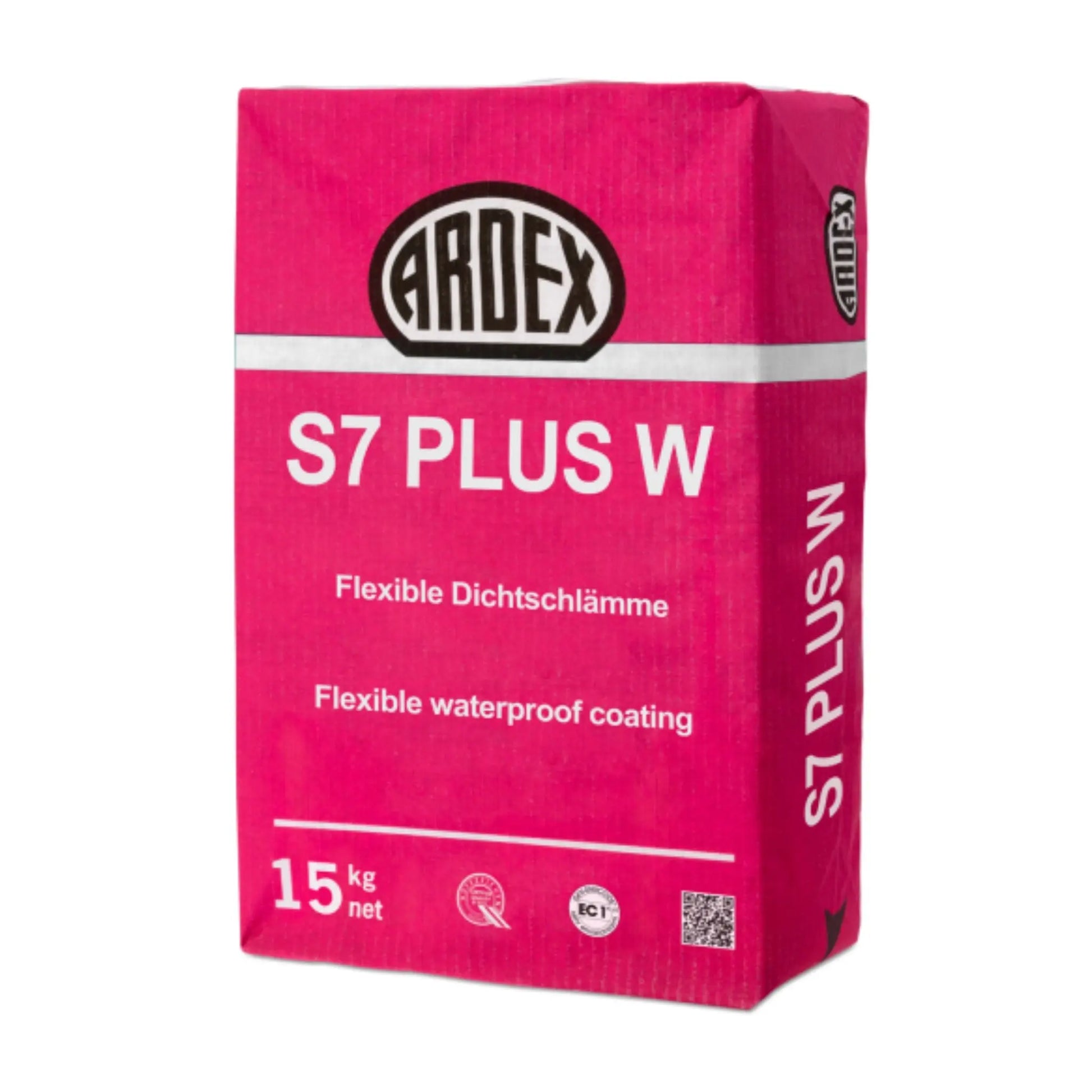

Waterproofing coating for swimming pools - ARDEX S 7 PLUS W

Used for waterproofing swimming pools, tanks, and basins before the installation of ceramic tiles. Resists water pressure up to 5 bar.

Easy to use, just add water and apply with a trowel, brush, roller, or spray gun to achieve a smooth finish. Its consistency is adjustable depending on the application. Fiber-reinforced for high strength, excellent stability, and great flexibility, it also bridges cracks.

ARDEX S 7 PLUS W is a single-component powder waterproofing product with a very wide range of uses. It is characterized by its excellent application properties. Its long working time combined with quick setting further enhances ease of use. Watertight under pressure up to 5 bar, it guarantees safe application, even in real-world construction site conditions.

PRODUCT HIGHLIGHTS:

• Powder product, single-component and odorless
• White
• For indoor and outdoor pools
• Applicable by brush, spray gun, roller, and trowel
• Variable consistency depending on application
• Fiber reinforcement
• High stability
• Very flexible, crack-bridging
• Can be used as a single-component S2 adhesive
• Resistant to water pressure up to 5 bar

Waterproofing for interior spaces DIN 18534:

ARDEX S 7 PLUS W can be used for water exposure classes W0-I, W1-I, W2-I and W3-I*.

• W3-I without additional chemical stress

Waterproofing for tanks and basins DIN 18535:

ARDEX S 7 PLUS W can be used for waterproofing tanks and basins indoors and outdoors in water exposure class W2-B.

When using the ARDEX TRICOM waterproofing kit: up to 2 m deep.
When using the high-strength waterproofing kit: up to 6 m deep.
Basins with overflow channel: up to 10 m deep.

DIN 18531 – Waterproofing of roofs as well as balconies, loggias and pergolas:

ARDEX S 7 PLUS W can be used for waterproofing balconies and terraces in conjunction with tiles or slabs.

Technical information

• Application time at +20°C: approx. 60 min
• Mixing ratios:

approx. 4.0 l water: 15.0 kg ARDEX S 7 PLUS W (trowel application)
approx. 5.0 l water: 15.0 kg ARDEX S 7 PLUS W (brush / roller application)

• Fresh mortar weight: approx. 1.30 kg/l
• Consumption:

approx. 2.5 kg/m² for 2 coats (approx. 2.5 mm wet thickness)
approx. 1.0 kg/m² for bonding SK 100 W with 3 mm notched trowel
approx. 1.5 kg/m² for bonding SK 100 W with 4 mm notched trowel
approx. 0.7 kg/m² for bonding SK 100 W by roller

• Walkability:
  approx. 4 hours after completion of waterproofing work, the substrate is ready for covering installation

EMICODE: EC 1 PLUS = very low emission PLUS
GISCODE: ZP1 = cement-based product, low in chromate

• Packaging: 15 kg net bags
• Storage:

Store in a dry place, approx. 9 months in original unopened packaging.
Reseal opened bags tightly.
